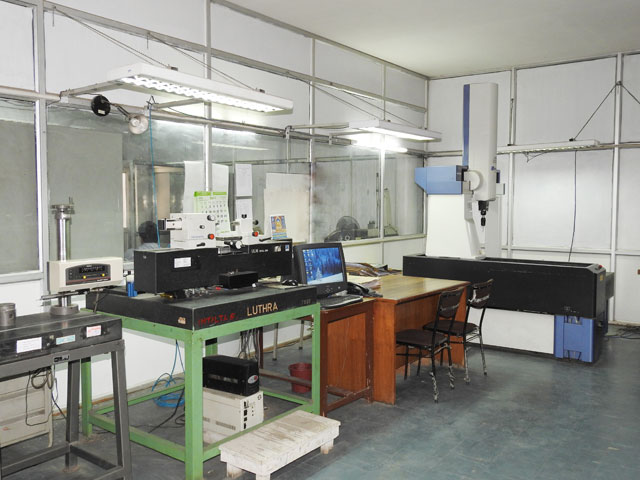

3-D Co-ordinate Measuring Machine, Model beyond crysta C7106 Mitutoya Japan, Measuring range XYZ : 700 X 1000 X 600 mm, resolution 1 micron for scanning contour and accurate measurement of precision components.
PRECISION MEASUREMENTS:-
Dimensional and Geometrical inspection for linear and angular parameter of components, Engineering parts, jigs and fixtures.
Surface roughness testing for value of Ra, Ry, Rz and R max.
Profile and contour tracing on profile projector.
CALIBRATION:-
Gaugeblock Measuring Instrument, Germany/Swiss make, for the calibration of slip gauge.
Horizontal gauge block, for the calibration of internal & external Thread Gauges & Bore Gauge, Micrometer and vernier calipers.
Vernier, Micrometer, Height Gauge, Slip gauge Block set, Long Slip gauge block set,Thread plug & Ring Gauge, Plain Ring & Ring Gauge, Surface Roughness master, Surface Plate (Granite Cl), Profile projector Tool maker microscope, Form errors, Radius Gauge, V-Block, Master cylinder, Steel Tape, Steel Scale, Dial Gauge, Torque Wrench, Pressure Gauge in NABL scope.
Laser Interferometer model API SD (USA) range 80 Mtr. For positioning, Alignment & Straightness Ball Bar make Mitutoyo Range Radius of 150mm.
